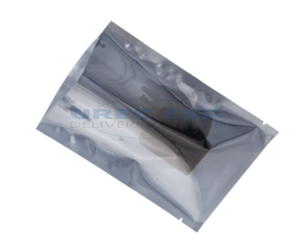

UREC- ESD Static Shielding Bags

Description

Metal in type static shielding bags are designed to protect static sensitive devices against static charge induced.  Buried metal layer bags offer superior durability at a low cost.

Physical Parameters:-

1. The aluminium-shielding layer is buried between to layer. (Antistatic dissipative P.E. and dissipative polyester sheet)  This metal layer prevents the penetration of damaging the sensitive devices from electrostatic field.
2. The dissipative polyester layer provides strength and prevents stretching which can reduce the effectiveness of shielding bags. The aluminium-shielding layer is a highly conductive metalized layer, which provides a watertight Faraday shield.
3. The inner dissipative P.E. layer prevents static Electricity generation inside the bag.

Technical Details:-

OUTER LAYER                          : Dissipative Polyester Layer.

MIDDLE LAYER                        : Metalized Layer.

INNER LAYER                           : Antistatic P.E. Layer.

SURFACE RESISTIVITY             :  (Ref: ANSI/ESD S 20.20.2024)

TOP LAYER                               :  ≤10¹¹max. OHMS/SQ.

MIDDLE (METALLIC) LAYER     : ≤10³ max. OHMS/SQ.

(Shielding layer)

INNER LAYER                             : ≤10¹⁰max. OHMS/SQ.

TRANSPARENCY                      : 40 % to 50%.

TOTAL THICKNES                    : MICRONS 75 ± 10%

STATIC GENERATION                : ≤   100 v

STATIC DECAY                          : ≤2 Seconds.

CORROSION                             : NIL

Size                                          : 100mm x 150, 150mm x 200 mm, 345x 360 mm,

(Sizes customized as per customer requirement)
