Description
Application:

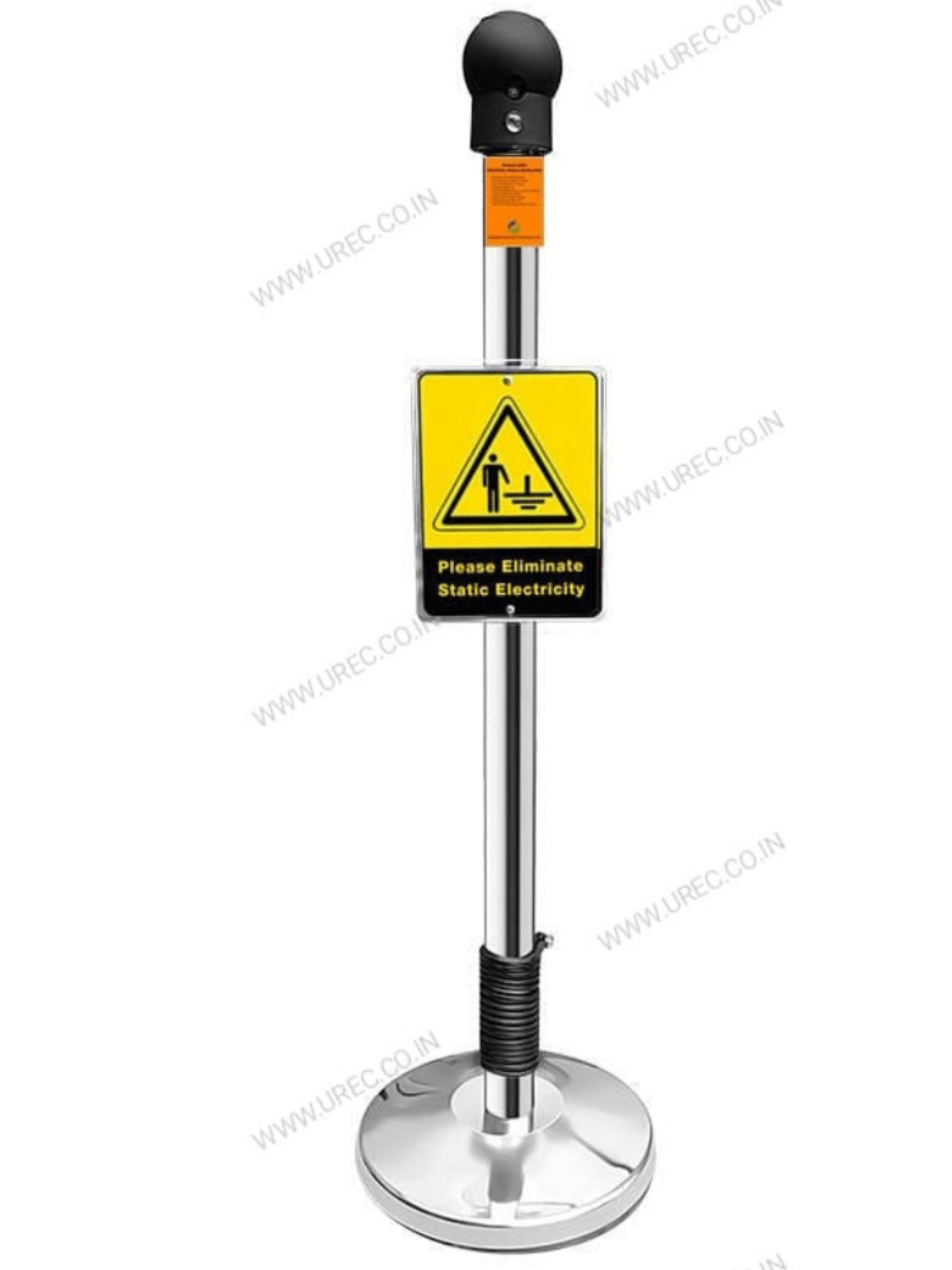

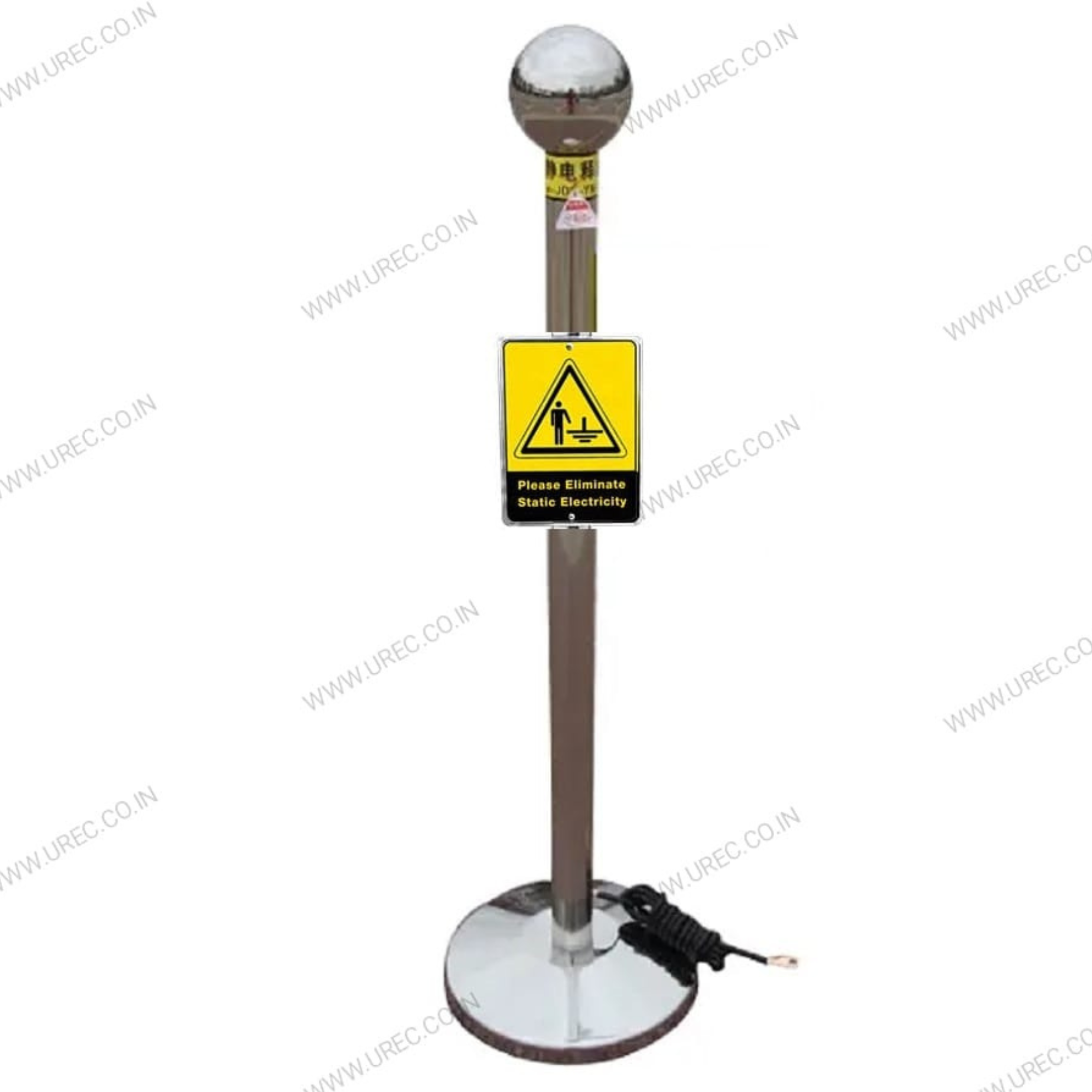

UREC-Human Body Static Discharge Pole is used in EPA (ESD protected areas), paint manufacturing industries, gas station unloading ports, self-service gas stations, automatic tankers, oil depots, warehouses, factory and workshop entrances, railway oil platforms, tank escalators, tank entrances, pump rooms, etc.

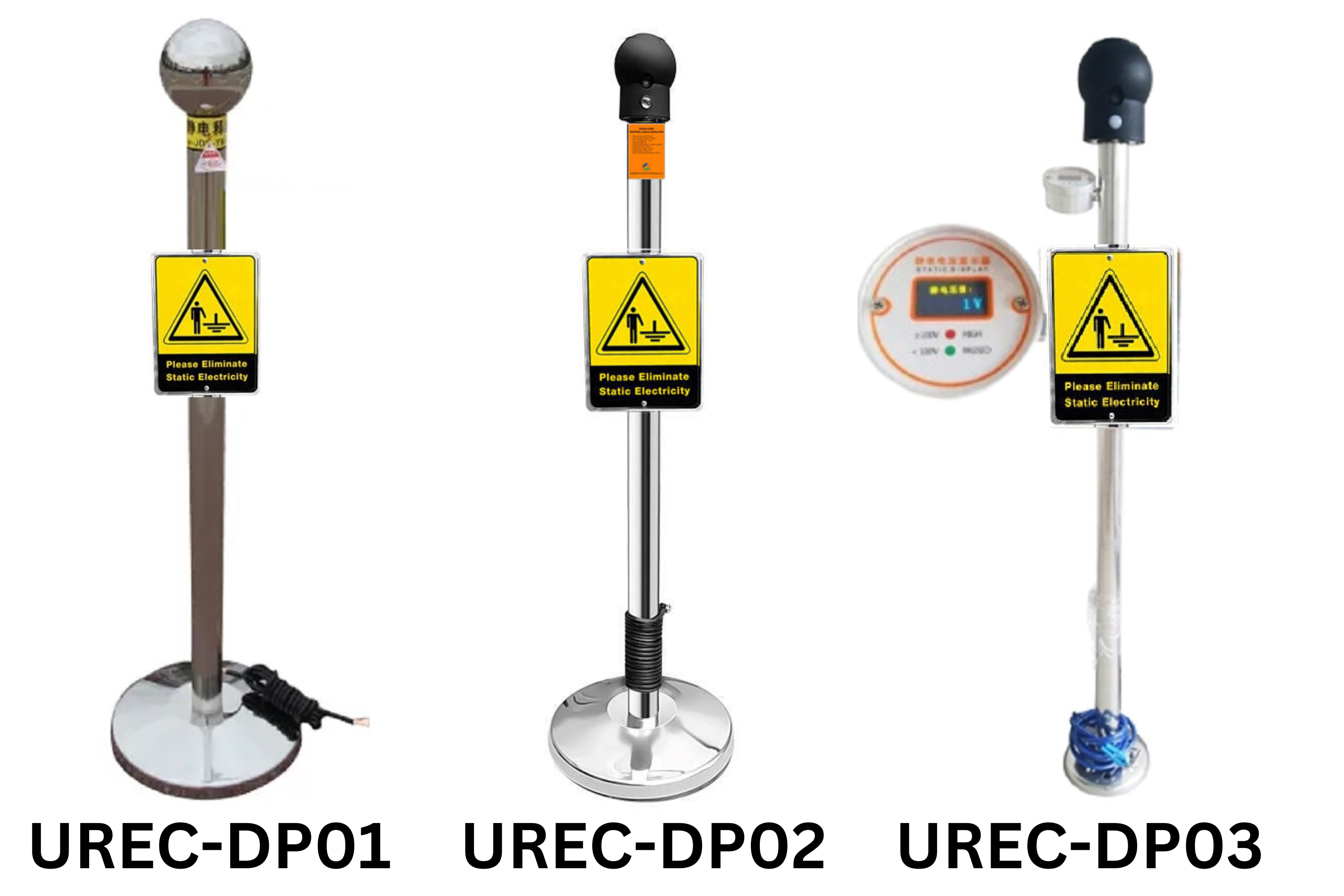

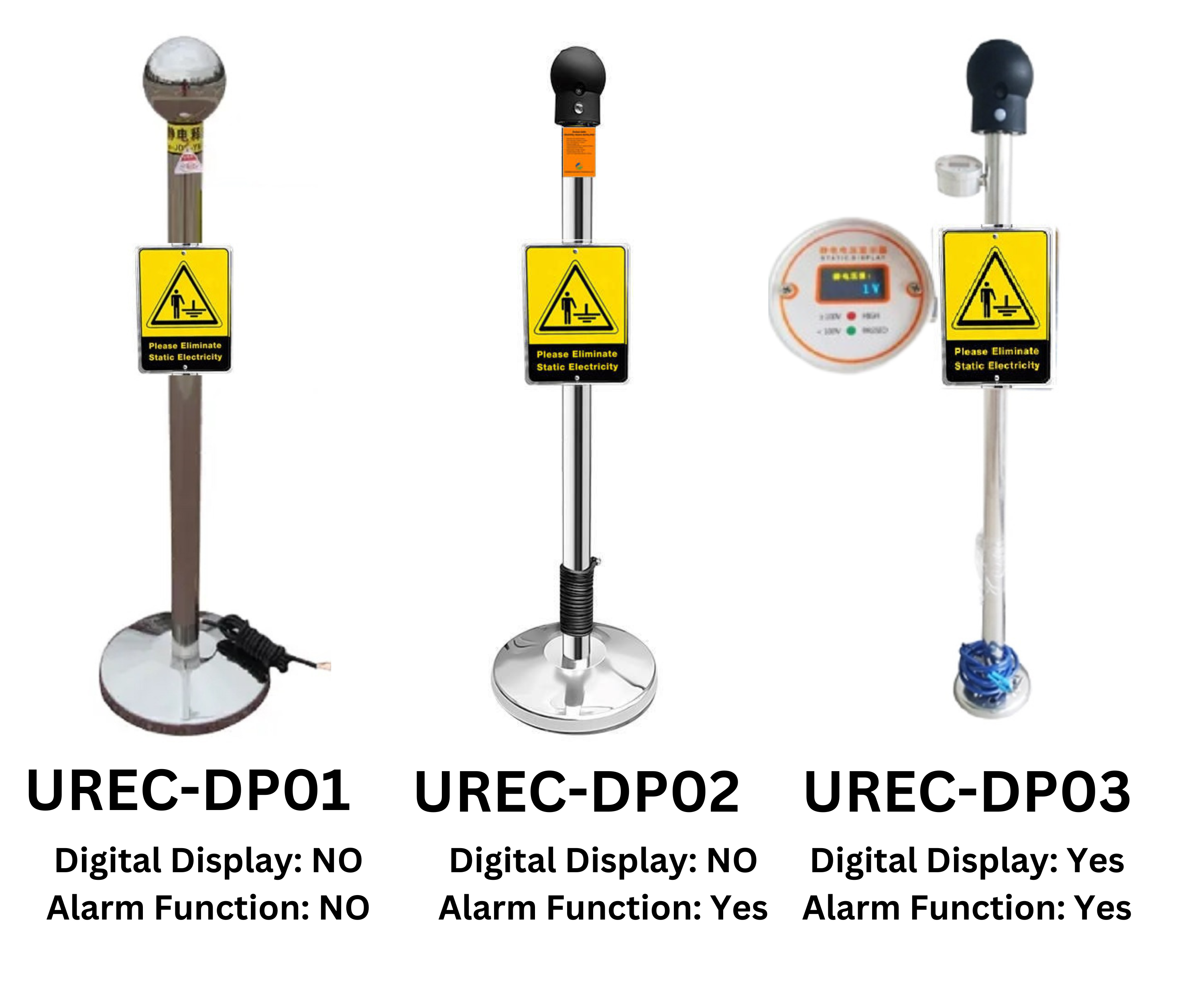

| Particulars | UREC-DP01 | UREC-DP02 | UREC-DP03 |
| Height | 1000mm | 1000mm | 1000mm |

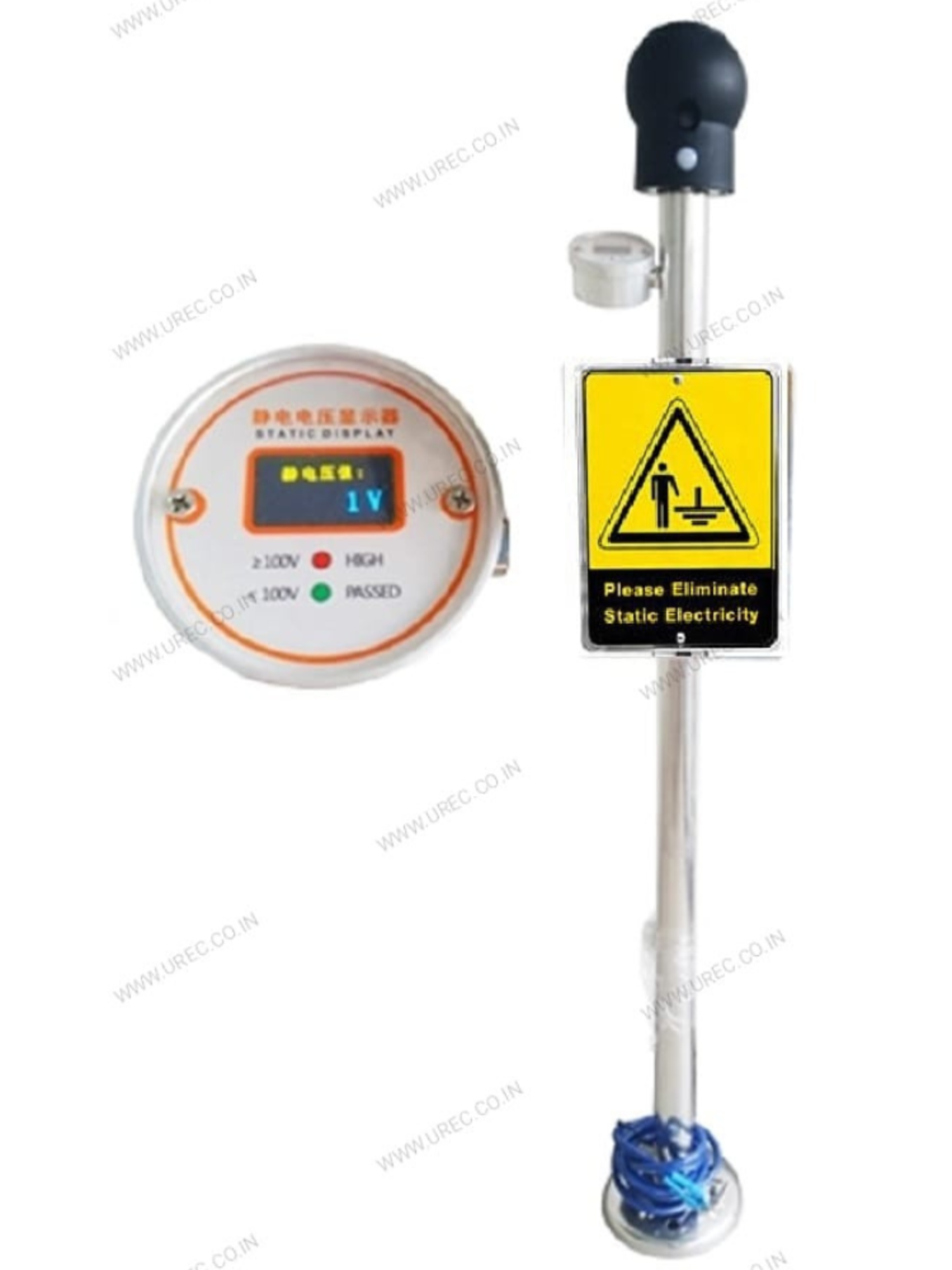

| Digital Display | N/A | N/A | Yes |
| Alarm Function | N/A | Yes | Yes |
| Touch the ball dameter | 90mm | 90mm | 90mm |
| Pole diameter | 50mm | 50mm | 50mm |
| Pole wall thickness | 2mm | 2mm | 2mm |
| Mounting flange diameter | 230mm | 230mm | 230mm |
| Ground cable length | 2 Meter | 2 Meter | 2 meter |
| The human body electrostatic | less than 20kv | less than 20kv | less than 20kv |
| Working temperature | 40-60 degress | 40-60 degress | 40-60 degress |
| The human body in voltage | less than 100v | less than 100v | less than 100v |
| The maximum current release | less than 2mA | less than 2mA | less than 2mA |
| Electrostatic release time | less than 100mS | less than 100mS | less than 100mS |
| Power Source | N/A | 3.6V DV lithium battery | 3.6V DV lithium battery |
| Rod Material | SS304 | SS304 | SS304 |
| Ground Resistance | ≤55Ω | ≤55Ω | ≤55Ω |
| Exposion Proof | Yes | Yes | Yes |
